Hyraulic Radial Riveting Machine-JM9L
Spin Riveting Machine
Floor type
|

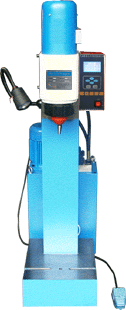

Model：JM9L |
||
| ■Floor type, medium size riveting design | |||
| ■Max. riveting diameter 9mm (solid steel rivet) | |||
| ■Hydraulic driven, Stepless pressure regulation | |||
| ■Safty cover at rotating part for protection | |||
| ■Reserved oil connector for hydraulic synchronous clamp | |||
| ■Square lifting platform with large stroke length,locked by handle | |||
| ■Widen workbench with T shape positioning hole | |||
| ■Low temperature rise and Low noise of hydraulic station | |||
| ■Electric control box equipped with fully functional LCD screen | |||
| ■Adjustable riveting time, Mode selection: Auto/Manual | |||
| ■Ergonomic design, easy operation | |||
JM9 |
Application scope: Automobile and motorcycle accessories, Aircraft, Construction hardware, etc. | ||
JM9L is a medium size and floor type orbital riveting machine driven by hydraulic power. It adopts the fifth generation of orbital technology-advanced cold rolling technology. It is particularly applicable for processing much long workpiece, the maximum long pole length is 820mm. The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively from 0 to 180mm, while micro adjusting is controlled from 0 to 30mm by the powerhead in screw cap. The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly. A flow regulating valve on the high pressure pipe can be used to adjust the rate of riveting process. The counter on the electricity control panel can be used to count the quantity of riveted work pieces.The good quality of all units on this machine ensure the smooth surface of workpiece and stability of processing. |
|||
|
Parameters of JM9L | ||
| ▲Max riveting diameter Φ2~Φ9 | |||
| ▲Max riveting pressure 14KN | |||
| ▲Max. delivery pressure ( oil pump) 2.5MPa | |||
| ▲Stroke Length Range 30MM | |||
| ▲Max. height (from powerhead to the table) 820MM | |||
| ▲Riveting head lift distancet 200MM | |||
| ▲Diameter of positioning hole Φ16 | |||
| ▲Distance form the centre of main shart to the face of upright 135MM | |||
| ▲Mold length 标准50MM | |||
| ▲Area of the table surface 360MM×500MM | |||
| ▲Power 0.92Kw | |||
| ▲Overall dimensions 740MM×400MM×1600MM | |||
|
▲Net weight 350Kg | ||
|
|||
Pressure calculation chart(Stepless pressure regulation)
|
|||
Video--Testing of Radial Riveting Machine
The qualified Radial riveting machine must should have slow and stability rotary of powerhead movement, as well must should be low noise.Let's watch this video about our products.
High Definition Video, Please ckick Video--Testing of Radial Riveting Machine
| Upgrade project | |||
 |
 |
 |
 |
| Micro adjusting index | Automatic lubricator | Integration control panel | PLC pressure monitor |
