Riveting Hand Gun and Clamp

Riveting Hand Gun and Clamp

Riveting Hand Gun and Clamp

Riveting Hand Gun is mainly the use of compressed air and specialized equipment to produce high frequency repeated impact, making the material to deform, it is suitable for thin-walled shell and aluminum, magnesium and other light alloy riveted. It is particularly applicable for general industry, aircraft industry,ect,

Construction Features of Riveting Hand Gun:

1. Pneumatic riveting gun/clamp mainly includes two parts: handle and barrel. The advantages: simple structure, small volume, light weight, easy maintenance, big impact energy, etc.

2.The gun handle is equipped with push button switch with clearance throttle device, easy to perform start and stop operation. Handle material forged LD5 aluminum, therefore the strength of handle is increased significantly, the life of the riveting gun is also increased accordingly.

3.During operation, it can form air cushion damping holes at the back of gun barrel therefore the recoil force is reduced.

4.The gas distribution device which connected on the barrel is mainly consist of gas hose, action valve and gas distribute blocks, the compressed air work on the piston to drive high-speed reciprocating movement, pounded the punch head to perform the riveting jobs.



Riveting hand clamp is a highly efficient manual riveting tool, suitable for larger size workpiece and the inconvenience of moving parts riveting, It is driven by pneumatic power, the clamp is equipped with button therefore can be easily performed riveting process. The better to use it to riveting soft material under 6 mm diameter due to the limitation of structure, small size and light weight.

Construction Features of Riveting Hand Clamp:

1. Riveting hand clamp is driven by pneumatic power and consist of clamp and air chamber. The advantages: simple structure, small volume, light weight, and easy maintenance,etc.

2. Air chamber barrel is made in aluminum materials, equipped with button switch which is applied clearance throttle device, it is easy to start with perfect conduction effect during operation.

3. The gas distribution device which connected on the barrel is mainly consist of gas hose, action valve and gas distribute blocks, the compressed air work on the piston to drive high-speed reciprocating movement, pounded the punch head to perform the riveting jobs.

Model SM4 SM5 SM6
Type Hand holding Hand holding Hand holding
Driven power Pneumatic Pneumatic Pneumatic
Rivets Diameter(mm) φ4 aluminium rivet φ5 aluminium rivet φ6 aluminium rivet
Air pressure(MPa) 0.49 0.49 0.63
Punch Frequency(Hz) 36 25 29
Air consumption(L/s) 3.66 4.16 6.2
Single punching energy (J) 2.9 3.9 3.97
Air hose diameter(mm) φ10 φ10 φ10
Punch head size(mm) φ10×25 φ10×25 φ10.25×45
Net weight(Kg) 1 1.18 1.26
Riveting Hand Gun and Clamp
C type(C-2)Clamp
Parameters of clamps
Model SMQ3 SMQ4 SMQ5 SMQ6
Type Hand holding Hand holding Hand holding Hand holding
Driven power Pneumatic Pneumatic Pneumatic Pneumatic
Air consumption(L/s) 3.66 4.16 5.2 6.2
Max. pressure(Kn) 15 24.5 39.2 48.5
Rivets Diameter(mm) φ3 Soft rivets φ4 Soft rivets φ5 Soft rivets φ6 Soft rivets
Punch head stroke(mm) 7 9 7.5 8
Air pressure(MPa) 0.49 0.49 0.49 0.49
Net weight(Kg) 3.5 3.8 4.8 5.5

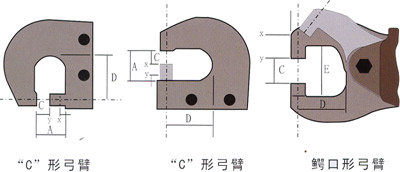

Parameters of series of Clamp
Riveting Hand Gun and Clamp
Model A(mm) C(mm) D(mm) E(mm) Dimension(mm)
C-1 Clamp 32 26 40 -- 98×410
C-2 Clamp 40.5 26 97 -- 163×425
C-3 Clamp 50 35 70 -- 130×423
C-4 Clamp 90 20 90 -- 165×465
E-1Clamp -- 14 46 60 163×425

Video---How to operate riveting gun

High definition Video,Please click Video---How to operate riveting gun
