CNC Frame Riveting Machine

CNC Frame Riveting Machine

CNC frame riveting machine is specialized for large size work pieces,the designing is humanized and high automatic which combined servo control unit with three-dimensional movement unit for efficient operation, it is possibly designed to single workbench or double workbenchs.



High precise riveting control

3 spindle-XYZ automatic control for precise positioning,the movement precision is 0.05mm and riveting precision is 0.05mm.



龙门数控铆接机

Muti-control mode

The mode switch can select the modes to Auto, Manuel and Inching on the control panel.The PLC control system equipped with weight sensor so that it can measure riveting pressure and indicated by numbers on the screen.As well, it equiped with grating ruler so that it can control the working stroke and indicated by numbers on the screen.The obvious advantage is to increase fatigue strength, smooth surface and processing efficiency.

Easy to adjust

Rivet head vertical adjustable, riveting stroke adjustable, suitable for different height of parts heat riveting, precise digital display riveting time control, riveting time adjustable.

Wider workbench

The workbench can be designed to 2D-NC wider workbench(optional fixed workbench),Max. moving distance is 1500mm and controlled by automatic sequencing.

Reasonable design

Compact design, Beautiful exterior, Small occupation area, High efficient production ect.


Safety protection devices

Security light curtains, Stainless steel fence, Steel dustproof board, Three color warning light. Specific parameters provided by the users, we design and manufacture them. We will customize as your requirement

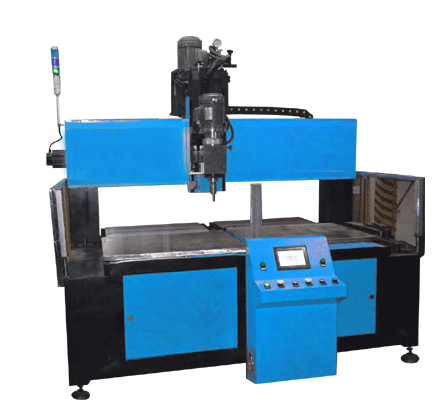

Double workbenchs CNC riveting machine

Double workbenchs CNC riveting machine

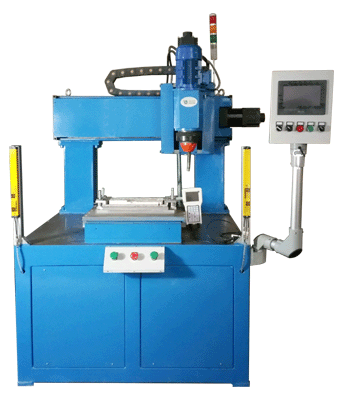

Single workbench CNC riveting machine

Single workbench CNC riveting machine

Large-scale frame CNC riveting machine(Orbital riveting machine,Hydraulic riveting machine

Large-scale frame CNC riveting machine(Orbital riveting machine,Hydraulic riveting machine

Video CNC frame riveting machine for processing engine cylinder cover

CNC cylinder cover riveting machines have been developed for the third generation of CNC riveting machine, it can get the riveting quality higher than the traditional riveting machine. The obvious advantages includes that it is suitable for processing various types of workpieces, and the riveting parameters is visible and adjustable on the touch screen, as well it equipped with the complete safety measures. The series of CNC riveting machines have already been purchased by many customers and we receive the good reputation for our products and service.

The single point riveting pressure of CNC cylinder cover riveting machines is only reach 10% that of traditional riveting machine. It can prevent unexpected deformation or damage due to the lower riveting pressure by radial riveting machine.Radial riveting head can produce partial pendulum movement and point of contact between the mould and workpieces, this is the reason why the riveting pressure is much lower than traditional riveting machine. On the other hand, radial riveting machine perform workpieces highly polished and smooth surface.

The most valuable of CNC riveting machine is particularly suitable for various types of cylinder cover, it will perfect match you expection because of the applying of XYZ three-dimensional positioning, no matter how many rivet points and how difficult to reach the corner of cylinder head. As well it is very easy to control that all of parameters can be set on the LCD touch screen.

High definition Video,Please clickVideo --CNC frame riveting machine for processing engine cylinder cover

Video ---CNC frame riveting machine for processing printers' unit

Sheet metal pieces of the printer usually have several fixed pin rod, it requires high precise riveting due to different rivets sizes and heights. The best choice is processed by CNC frame riveting machine which equipped with XYZ three spindle control and radial powerhead, as well a air cylinder for turning out the completed workpieces.

High definition Video,Please click Video---CNC frame riveting machine for processing engine cylinder cover
